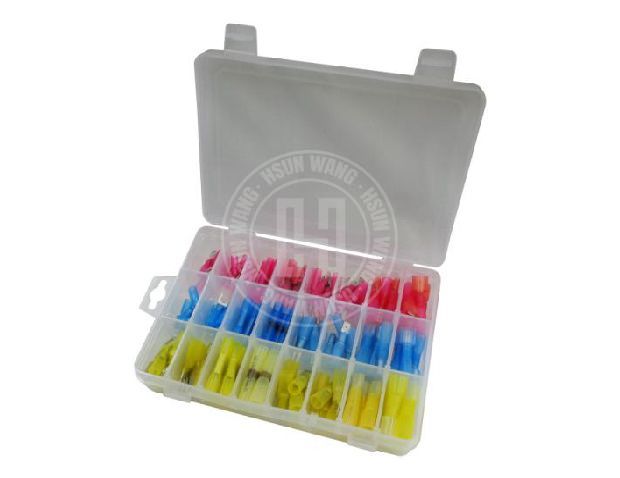

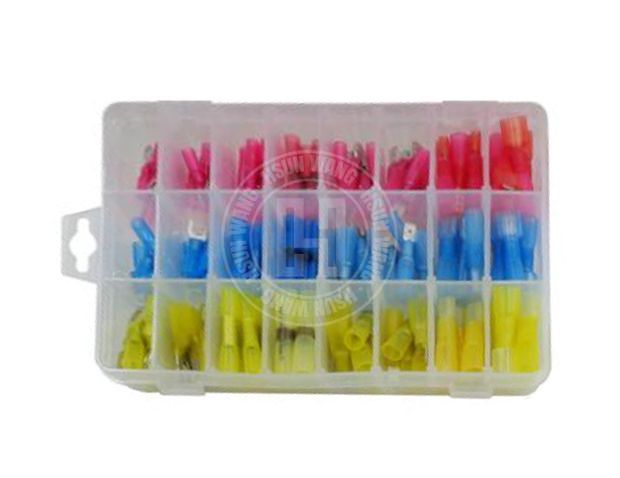

126PCE Heat Shrink Terminal Kit / Item No:E01126HC1

Item No: E01126HC1      126PCE Heat Shrink Terminal Kit

• Heat Shrink Ring Terminal
• Heat Shrink Spade Terminal
• Heat Shrink Butt Connector
• Heat Shrink Tin Butt Connector
• Heat Shrink Male & Female Disconnector
• Heat Shrinkable-Fully Nylon Male & Female Disconnector

Heat Shrink Ring/Spade Terminal/Butt Connector:

Terminal Material: Copper

Insulation Material: PE

1. Shrink Temperature: 150°C
2. Operating Temperature: -10°C~ +105°C
3. Shrink Ratio: 3:1
4. Maximum Electrical Rating: 600 Volts
5. Waterproof

Heat Shrink Male/Female Disconnector:

Terminal Material: Brass

Insulation Material: PE

1. Shrink Temperature: 150°C
2. Operating Temperature: -10°C~ +105°C
3. Shrink Ratio: 3:1
4. Maximum Electrical Rating: 300 Volts
5. Waterproof

Heat Shrinkable-Fully Nylon Male/Female Disconnectors:

Terminal Material: Brass

Insulation Material: Nylon & PE

1. Operating Temperature: -10°C~ +105°C
2. Shrink Ratio: 3:1
3. Maximum Electrical Rating: 300 Volts
4. Waterproof

Heat Shrink Tin Butt Connector:

Terminal Material: Tin

Insulation Material: PE

1. Operating Temperature: -40°C~ +105°C
2. Shrink Ratio: 3:1
3. Maximum Electrical Rating: 600 Volts
4. Waterproof

Packing List:  6/24/CTN/9.1/10.1/KGS/1.5'
                        PP Box & Label
PP Box Size:  22 x 14.4 x 4 cm (Include Hanger)
Unit Weight:  381g

For more information please contact us.
